KF77R37DT71S4詳細信息
KF77R37DT71S4
訂購熱線：13360667204
關鍵詞：0.8KW伺服電機傘齒輪減速電機_KF77R37DT71S4_KF77R37DRE80K4
KF77R37DT71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KF77R37DT71S4 | 1053 | 0.25KW | 1.20r/min | 1720N.m | 75.5kg | 14000N | 0.90 |
| KF77R37DT71S4 | 924 | 0.25KW | 1.40r/min | 1510N.m | 75.5kg | 15600N | 1.00 |
| KF77R37DT71S4 | 815 | 0.25KW | 1.60r/min | 1330N.m | 75.5kg | 16700N | 1.15 |
| KF77R37DT71S4 | 709 | 0.25KW | 1.80r/min | 1110N.m | 75.5kg | 17800N | 1.40 |
| KF77R37DT71S4 | 622 | 0.25KW | 2.10r/min | 970N.m | 75.5kg | 18400N | 1.60 |
| KF77R37DT71S4 | 552 | 0.25KW | 2.40r/min | 870N.m | 75.5kg | 18700N | 1.75 |
| KF77R37DT71S4 | 485 | 0.25KW | 2.70r/min | 765N.m | 75.5kg | 19100N | 2.00 |
| KF77R37DT71S4 | 428 | 0.25KW | 3.00r/min | 675N.m | 75.5kg | 19300N | 2.30 |
| KF77R37DT71S4 | 367 | 0.25KW | 3.50r/min | 590N.m | 75.5kg | 19500N | 2.60 |
| KF77R37DT71S4 | 328 | 0.25KW | 4.00r/min | 525N.m | 75.5kg | 19600N | 2.90 |
| KF77R37DT71S4 | 290 | 0.25KW | 4.50r/min | 465N.m | 75.5kg | 19700N | 3.30 |
| KF77R37DT71S4 | 252 | 0.25KW | 5.20r/min | 400N.m | 75.5kg | 19900N | 3.80 |
| KF77R37DT71S4 | 221 | 0.25KW | 5.90r/min | 350N.m | 75.5kg | 19900N | 4.40 |
| KF77R37DT71S4 | 195 | 0.25KW | 6.70r/min | 310N.m | 75.5kg | 20000N | 5.00 |
| KF77R37DT71S4 | 175 | 0.25KW | 7.40r/min | 270N.m | 75.5kg | 20000N | 5.60 |
KF77R37DRE80K4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KF77R37DRE80K4 | 485 | 0.55KW | 2.80r/min | 1660N.m | 80.5kg | 14600N | 0.95 |
| KF77R37DRE80K4 | 428 | 0.55KW | 3.20r/min | 1460N.m | 80.5kg | 16000N | 1.05 |
| KF77R37DRE80K4 | 367 | 0.55KW | 3.80r/min | 1260N.m | 80.5kg | 17100N | 1.20 |
| KF77R37DRE80K4 | 328 | 0.55KW | 4.20r/min | 1120N.m | 80.5kg | 17800N | 1.35 |
| KF77R37DRE80K4 | 290 | 0.55KW | 4.80r/min | 1000N.m | 80.5kg | 18300N | 1.55 |
| KF77R37DRE80K4 | 252 | 0.55KW | 5.50r/min | 860N.m | 80.5kg | 18800N | 1.80 |
| KF77R37DRE80K4 | 221 | 0.55KW | 6.20r/min | 755N.m | 80.5kg | 19100N | 2.00 |
| KF77R37DRE80K4 | 195 | 0.55KW | 7.10r/min | 665N.m | 80.5kg | 19300N | 2.30 |
| KF77R37DRE80K4 | 175 | 0.55KW | 7.90r/min | 595N.m | 80.5kg | 19500N | 2.60 |
| KF77R37DRE80K4 | 154 | 0.55KW | 9.00r/min | 525N.m | 80.5kg | 19600N | 3.00 |
KF77R37DT71S4減速機類型：
K77R37DT71S4底腳安裝斜齒輪—傘齒輪減速電機
KA77BR37DT71S4底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV77BR37DT71S4底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH77BR37DT71S4底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF77R37DT71S4B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF77R37DT71S4B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF77R37DT71S4B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF77R37DT71S4B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA77R37DT71S4空心軸斜齒輪─傘齒輪減速電機
KV77R37DT71S4花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH77R37DT71S4空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT77R37DT71S4空心軸安裝斜齒輪—傘齒輪減速電機
KAZ77R37DT71S4B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ77R37DT71S4B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ77R37DT71S4B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

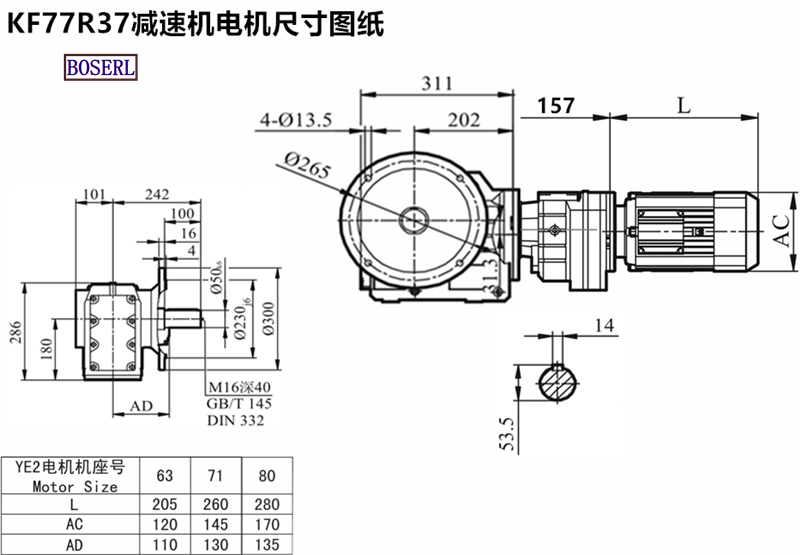

KF77R37DT71S4減速機馬達安裝尺寸圖紙
KF77R37DT71S4減速機電機生產廠家，看廠請?zhí)崆叭祛A約大功率減速電機
關鍵詞:KF系列齒輪減速機與電機_大功率減速電機_大負載減速器_大負載減速機電機_大功率電機減速機_大功率電動機減速機_大負載電動機減速機一套生產廠家
KF系列減速機型號：KF37減速機,KF47減速機,KF57減速機,KF67減速機,KF77減速機,KF87減速機,KF97減速機,KF107減速機,KF127減速機,KF157減速機,KF167減速機,KF187減速機
KF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.8KW伺服電機傘齒輪減速電機 KF77R37DT71S4 KF77R37DRE80K4
