KA37/TDRS71S4詳細信息

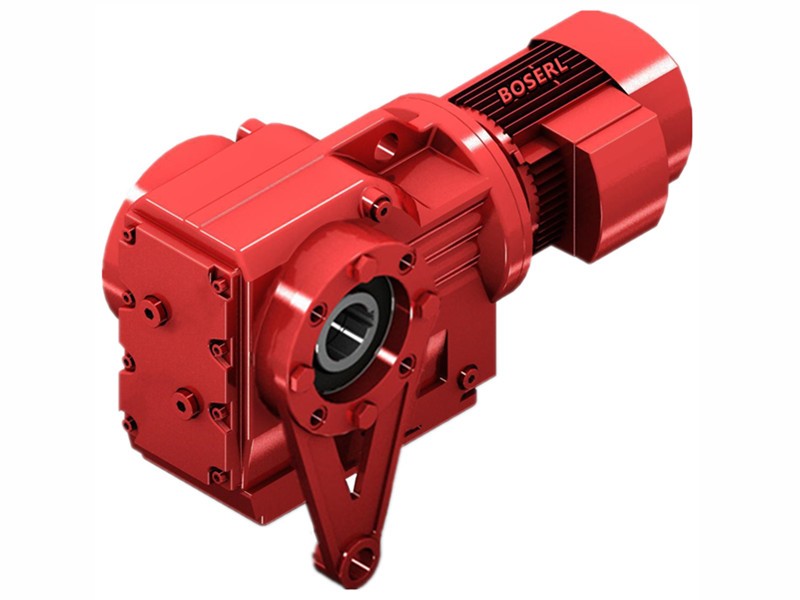

KA37/TDRS71S4
訂購熱線：13360667204
關鍵詞：0.75KW電機能配多大空心杯減速箱_KA37/TDRS71S4_KA37/TDR71S4
KA37/TDRS71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KA37/TDRS71S4 | 97.81 | 0.37kw | 14rpm | 250N.m | 19kg | 2520N | 0.8 |
| KA37/TDRS71S4 | 83.69 | 0.37kw | 16rpm | 210N.m | 19kg | 5470N | 0.95 |
| KA37/TDRS71S4 | 72.54 | 0.37kw | 19rpm | 186N.m | 19kg | 5690N | 1.1 |
| KA37/TDRS71S4 | 67.8 | 0.37kw | 20rpm | 174N.m | 19kg | 5630N | 1.15 |
| KA37/TDRS71S4 | 58.6 | 0.37kw | 24rpm | 150N.m | 19kg | 5500N | 1.35 |
| KA37/TDRS71S4 | 49.79 | 0.37kw | 28rpm | 128N.m | 19kg | 5350N | 1.55 |
| KA37/TDRS71S4 | 44.46 | 0.37kw | 31rpm | 114N.m | 19kg | 5230N | 1.75 |
| KA37/TDRS71S4 | 37.97 | 0.37kw | 36rpm | 97N.m | 19kg | 5060N | 2.1 |
| KA37/TDRS71S4 | 35.57 | 0.37kw | 39rpm | 91N.m | 19kg | 4990N | 2.2 |
| KA37/TDRS71S4 | 29.96 | 0.37kw | 46rpm | 77N.m | 19kg | 4800N | 2.6 |
| KA37/TDRS71S4 | 28.83 | 0.37kw | 48rpm | 74N.m | 19kg | 4750N | 2.7 |
| KA37/TDRS71S4 | 24.99 | 0.37kw | 55rpm | 64N.m | 19kg | 4590N | 3.1 |
| KA37/TDRS71S4 | 23.36 | 0.37kw | 59rpm | 60N.m | 19kg | 4510N | 3.3 |
| KA37/TDRS71S4 | 20.19 | 0.37kw | 68rpm | 52N.m | 19kg | 4350N | 3.6 |
| KA37/TDRS71S4 | 17.15 | 0.37kw | 80rpm | 44N.m | 19kg | 4160N | 4.1 |
| KA37/TDRS71S4 | 15.31 | 0.37kw | 90rpm | 39N.m | 19kg | 4040N | 4.5 |
| KA37/TDRS71S4 | 13.08 | 0.37kw | 105rpm | 34N.m | 19kg | 3860N | 4.9 |
| KA37/TDRS71S4 | 12.14 | 0.37kw | 114rpm | 31N.m | 19kg | 3780N | 5.1 |
| KA37/TDRS71S4 | 10.49 | 0.37kw | 132rpm | 27N.m | 19kg | 3630N | 6 |
| KA37/TDRS71S4 | 8.91 | 0.37kw | 155rpm | 23N.m | 19kg | 3460N | 7 |
| KA37/TDRS71S4 | 7.96 | 0.37kw | 173rpm | 20N.m | 19kg | 3350N | 7.6 |
| KA37/TDRS71S4 | 6.8 | 0.37kw | 203rpm | 17N.m | 19kg | 3190N | 8.6 |
| KA37/TDRS71S4 | 6.37 | 0.37kw | 217rpm | 16N.m | 19kg | 3130N | 8.9 |
| KA37/TDRS71S4 | 5.36 | 0.37kw | 257rpm | 14N.m | 19kg | 2970N | 10 |
KA37/TDR71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KA37/TDR71S4 | 97.81 | 0.37kw | 14rpm | 250N.m | 19kg | 2520N | 0.8 |
| KA37/TDR71S4 | 83.69 | 0.37kw | 16rpm | 210N.m | 19kg | 5470N | 0.95 |
| KA37/TDR71S4 | 72.54 | 0.37kw | 19rpm | 186N.m | 19kg | 5690N | 1.1 |
| KA37/TDR71S4 | 67.8 | 0.37kw | 20rpm | 174N.m | 19kg | 5630N | 1.15 |
| KA37/TDR71S4 | 58.6 | 0.37kw | 24rpm | 150N.m | 19kg | 5500N | 1.35 |
| KA37/TDR71S4 | 49.79 | 0.37kw | 28rpm | 128N.m | 19kg | 5350N | 1.55 |
| KA37/TDR71S4 | 44.46 | 0.37kw | 31rpm | 114N.m | 19kg | 5230N | 1.75 |
| KA37/TDR71S4 | 37.97 | 0.37kw | 36rpm | 97N.m | 19kg | 5060N | 2.1 |
| KA37/TDR71S4 | 35.57 | 0.37kw | 39rpm | 91N.m | 19kg | 4990N | 2.2 |
| KA37/TDR71S4 | 29.96 | 0.37kw | 46rpm | 77N.m | 19kg | 4800N | 2.6 |
| KA37/TDR71S4 | 28.83 | 0.37kw | 48rpm | 74N.m | 19kg | 4750N | 2.7 |
| KA37/TDR71S4 | 24.99 | 0.37kw | 55rpm | 64N.m | 19kg | 4590N | 3.1 |
| KA37/TDR71S4 | 23.36 | 0.37kw | 59rpm | 60N.m | 19kg | 4510N | 3.3 |
| KA37/TDR71S4 | 20.19 | 0.37kw | 68rpm | 52N.m | 19kg | 4350N | 3.6 |
| KA37/TDR71S4 | 17.15 | 0.37kw | 80rpm | 44N.m | 19kg | 4160N | 4.1 |
| KA37/TDR71S4 | 15.31 | 0.37kw | 90rpm | 39N.m | 19kg | 4040N | 4.5 |
| KA37/TDR71S4 | 13.08 | 0.37kw | 105rpm | 34N.m | 19kg | 3860N | 4.9 |
| KA37/TDR71S4 | 12.14 | 0.37kw | 114rpm | 31N.m | 19kg | 3780N | 5.1 |
| KA37/TDR71S4 | 10.49 | 0.37kw | 132rpm | 27N.m | 19kg | 3630N | 6 |
| KA37/TDR71S4 | 8.91 | 0.37kw | 155rpm | 23N.m | 19kg | 3460N | 7 |
| KA37/TDR71S4 | 7.96 | 0.37kw | 173rpm | 20N.m | 19kg | 3350N | 7.6 |
| KA37/TDR71S4 | 6.8 | 0.37kw | 203rpm | 17N.m | 19kg | 3190N | 8.6 |
| KA37/TDR71S4 | 6.37 | 0.37kw | 217rpm | 16N.m | 19kg | 3130N | 8.9 |
| KA37/TDR71S4 | 5.36 | 0.37kw | 257rpm | 14N.m | 19kg | 2970N | 10 |
KA37/TDRS71S4減速機類型：
K..DR..底腳安裝斜齒輪—傘齒輪減速電機
KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA..DR..空心軸斜齒輪─傘齒輪減速電機
KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機
KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA37/TDRS71S4減速機馬達安裝尺寸圖紙
KA37/TDRS71S4減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
雙孔輸出減速機應用案例展示：
關鍵詞:KA系列減速機與電機_雙孔輸出減速電機一套_雙孔輸出減速機電機_雙孔輸出電機減速機_雙速電動機減速機_通孔減速機_雙速電機減速機生產廠家
KA系列減速機型號：KA37減速機,KA47減速機,KA57減速機,KA67減速機,KA77減速機,KA87減速機,KA97減速機,KA107減速機,KA127減速機,KA157減速機,KA167減速機,KA187減速機
KA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.75KW電機能配多大空心杯減速箱 KA37/TDRS71S4 KA37/TDR71S4
